Castle Architecture

Learning a few terms will enhance your experience among Europe’s medieval fortresses

castle architecture diagram

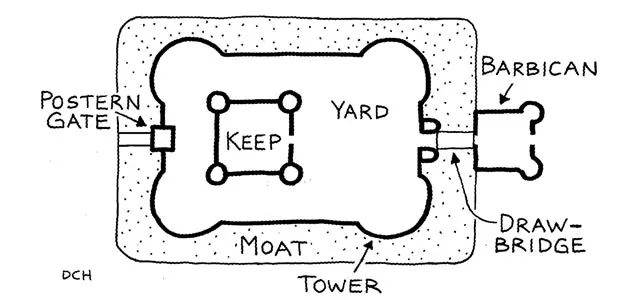

Parts of a typical medieval castle. David C. Hoerlein / Courtesy of Rick Steves' Europe Through the Back Door

A castle is a fortified residence for a medieval noble. Castles come in all shapes and sizes, but knowing a few general terms will help you understand them.

The Keep (or Donjon): A high, strong stone tower in the center of the castle complex that was the lord's home and refuge of last resort.

Great Hall: The largest room in the castle, serving as throne room, conference center, and dining hall.

The Yard (or Bailey or Ward): An open courtyard inside the castle walls.

Loopholes: Narrow slits in the walls (also called embrasures, arrow slits, or arrow loops) through which soldiers could shoot arrows at the enemy.

Towers: Tall structures serving as lookouts, chapels, living quarters, or the dungeon. Towers could be square or round, with either crenellated tops or conical roofs.

Turret: A small lookout tower projecting up from the top of the wall.

Moat: A ditch encircling the wall, often filled with water.

Wall Walk (or Allure): A pathway atop the wall where guards could patrol and where soldiers stood to fire at the enemy.

Parapet: Outer railing of the wall walk.

Crenellation: A gap-toothed pattern of stones atop the parapet.

Hoardings (or Gallery or Brattice): Wooden huts built onto the upper parts of the stone walls. They served as watch towers, living quarters, and fighting platforms.

Machicolation: A stone ledge jutting out from the wall, fitted with holes in the bottom. If the enemy was scaling the walls, soldiers could drop rocks or boiling oil down through the holes and onto the enemy below.

Barbican: A fortified gatehouse, sometimes a stand-alone building located outside the main walls.

Drawbridge: A bridge that could be raised or lowered, using counterweights or a chain-and-winch.

Portcullis: A heavy iron grille that could be lowered across the entrance.

Postern Gate: A small, unfortified side or rear entrance used during peacetime. In wartime, it became a "sally-port" used to launch surprise attacks, or as an escape route.

Excerpted from Rick Steves’ Germany.

For all the details on castles in Germany, please see Rick Steves’ Germany.
