Cooking Up Oven Innovations in the 1860s
As we prepare to spend a lot of time in the kitchen, we’re thankful that appliances have come a long way since these models from 1866
![Potter-Paris-Co-Catalogue-of-Stoves-page-7.jpeg](https://th-thumbnailer.cdn-si-edu.com/J75nlLm9OoOkSwCyJlMoR6INEeU=/1000x750/filters:no_upscale()/https://tf-cmsv2-smithsonianmag-media.s3.amazonaws.com/filer_public/45/d0/45d01e33-2f5d-4b60-b854-932a89bfd62a/potter-paris-co-catalogue-of-stoves-page-7.jpeg)
With Thanksgiving just around the corner, we might be thinking of delicious food. Or perhaps we are realizing how much time it will take to prepare such a meal. Modern kitchen appliances have made cooking easier but imagine what it was like to cook on a stove, such as one of these, in the 1860s.
This trade catalog is titled Catalogue of Stoves (1866) by Potter, Paris & Co. The company was established in 1848 and manufactured stoves and related accessories.
![Title page of trade catalog.](https://th-thumbnailer.cdn-si-edu.com/K5x647aNXLOYOtlUpaFF7GlHM5c=/fit-in/1072x0/https://tf-cmsv2-smithsonianmag-media.s3.amazonaws.com/filer_public/95/3a/953a0663-3995-4681-baea-0e00dbb8c3a3/potter-paris-co-catalogue-of-stoves-title.jpeg)
![Back cover of trade catalog with illustration of factory](https://th-thumbnailer.cdn-si-edu.com/J3dUx0TxHhXF9TPSxRyb4Vfj45Y=/fit-in/1072x0/https://tf-cmsv2-smithsonianmag-media.s3.amazonaws.com/filer_public/41/2e/412e91bc-2d16-4251-a716-8c682e1866b1/potter-paris-co-catalogue-of-stoves-back-cover.jpeg)
It appears that Potter, Paris & Co. intended for this catalog to cover two years. An introductory page of "Terms and Prices" includes a statement dated July 1866 explaining that the catalog “will probably be for two years, 1866 and 1867.” It also mentions that “separate cuts of any new stoves” during that time will be provided to their customers for insertion or pasting into the catalog.
As it turns out, the firm of Potter, Paris & Co. dissolved at the end of 1867. Burdett, Paris & Co. became the successor to Potter, Paris & Co. and continued manufacturing stoves at the Troy Stove Works. We learned that fact from another trade catalog titled Illustrated Catalogue of Stoves & Hollow Ware (1868) by Burdett, Paris & Co. which was highlighted in a previous post.
But now, let’s examine a few stoves manufactured by Potter, Paris & Co. around the year 1866. Turning to page 5 of Catalogue of Stoves (1866), we spot the heading, “A Page of New Ideas.” This is where Potter, Paris & Co. presented two new inventions, both available on their stoves. These two ideas were the “New Patent Reservoir” and the “Patent Warming Oven.”

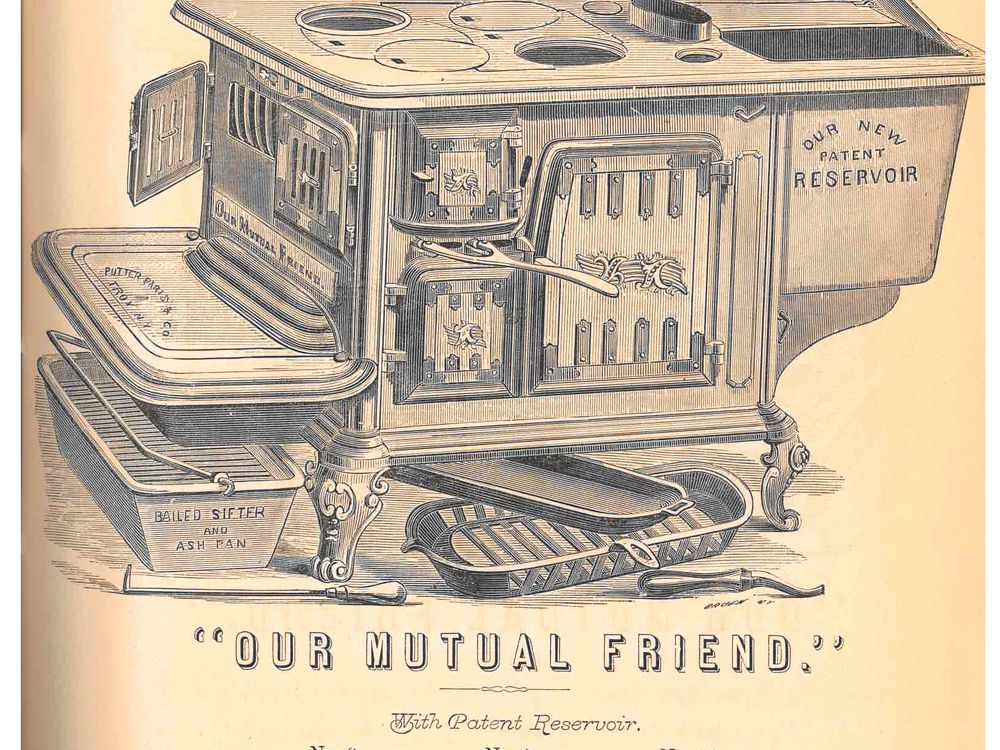

The reservoir was made of cast iron with the option of being enameled or galvanized. Its position “on a seat in rear of the back flues” allowed heat to pass “up in under the Reservoir before entering the exit pipe.” A damper controlled heat in the stove. If the damper was placed in a horizontal position, the heat was carried under the reservoir. If the damper was moved to a perpendicular position, the heat passed through the smoke pipe without heating the reservoir. This provided the option of either heating or not heating the reservoir which meant water in the reservoir could be kept warm or boiled. The New Patent Reservoir is shown below on a stove called “Our Mutual Friend.”
![Illustration of mid 19th century wood or coal stove](https://th-thumbnailer.cdn-si-edu.com/XUe005ltUuh9PM8Ox43Xmr5TzI8=/fit-in/1072x0/https://tf-cmsv2-smithsonianmag-media.s3.amazonaws.com/filer_public/45/d0/45d01e33-2f5d-4b60-b854-932a89bfd62a/potter-paris-co-catalogue-of-stoves-page-7.jpeg)
The other new idea was the Patent Warming Oven. Measuring 9 to 12 inches high, it was made of “a Box of Sheet-Iron, which has neither top nor bottom, placed under the stove.” The floor under the stove was covered with zinc or sheet metal, and a rack or grate was positioned to keep food being warmed off the floor. As shown in the illustration below, the warming oven included double doors.
![Page from trade catalog with text and illustration of small warming oven under stove](https://th-thumbnailer.cdn-si-edu.com/4PELQlKpuCYP2UOSoQzcVdA7bNw=/fit-in/1072x0/https://tf-cmsv2-smithsonianmag-media.s3.amazonaws.com/filer_public/a4/99/a4991482-f965-4aa4-8aa0-2a0caa13d1f9/potter-paris-co-catalogue-of-stoves-page-5.jpeg)
A variety of stoves, including ones of different sizes, are illustrated in this catalog. The stove named “Good Manners” which is shown below was intended for coal or wood. It was described as “next to the best” and included the same important features as “Our Mutual Friend” which is illustrated above, though not as large and without lined doors.
“Good Manners” was part of a series of stoves of which “Our Mutual Friend” was the largest and “Good Baker” was the smallest. The reservoir is shown in the illustration of the “Good Manners” stove below (right). The illustration includes arrows which “show the direction of the heat as it passes up in under the Reservoir, and thence back to the flue.”
![Two pages from trade catalog with coal and wood stoves](https://th-thumbnailer.cdn-si-edu.com/0GuWUBimauk-MR1bRkraW3JOI3o=/fit-in/1072x0/https://tf-cmsv2-smithsonianmag-media.s3.amazonaws.com/filer_public/1f/d5/1fd58292-d294-44c4-af1c-f0b6003b2178/potter-paris-co-catalogue-of-stoves-pages-8.jpeg)
![Trade catalog illustration of coal/wood stove](https://th-thumbnailer.cdn-si-edu.com/XPoOsX_PtI3ZFuIlTD-VPSXHDrU=/fit-in/1072x0/https://tf-cmsv2-smithsonianmag-media.s3.amazonaws.com/filer_public/c2/d3/c2d31121-bc07-4dc7-a2c5-63edf04042e2/potter-paris-co-catalogue-of-stoves-page-23.jpeg)
The catalog also includes pages on accessories for the kitchen. Below are illustrations of some kettles and a few pieces of hollow ware, such as pots and a pan.
![Trade catalog page with illustrations of 19th century cast iron cookware](https://th-thumbnailer.cdn-si-edu.com/Qlr0VyRpBZ-Ij6BC2A9KQi-w-B0=/fit-in/1072x0/https://tf-cmsv2-smithsonianmag-media.s3.amazonaws.com/filer_public/99/3a/993abbd4-8781-43c9-9f2e-52e40c7dd5d6/potter-paris-co-catalogue-of-stoves-page-65.jpeg)
Catalogue of Stoves (1866) by Potter, Paris & Co. is located in the Trade Literature Collection at the National Museum of American History Library.
