D is for Dyoplosaurus

A hidden ankylosaur species changes how paleontologists understand the evolution of North America’s Late Cretaceous dinosaurs

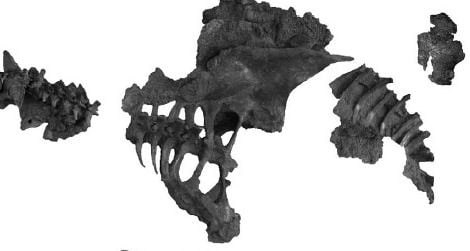

The dinosaur William Parks described as Dyoplosaurus, showing where the bones would have fit on the actual animal. From Arbour et al., 2009

If I started this Dinosaur Alphabet series just a few years ago, I wouldn’t have included Dyoplosaurus. Up until 2009, the dinosaur was hiding within another genus of heavily-armored ankylosaur. But after decades of discovery and debate, Dyoplosaurus is back, and the Cretaceous club-tail has its own role to play in wider discussions about the tempo and mode of dinosaur evolution.

Canadian paleontologist William Parks named the ankylosaur in 1924. Just a few field seasons earlier, in 1920, a University of Toronto crew found the partial skeleton of an armored dinosaur in the Late Cretaceous rock along the Red Deer River in Alberta. “The anterior part of the skeleton had been long exposed and had suffered in consequence,” Parks later wrote, but the team was still able to collect part of the skull, some tooth fragments, ribs and, best of all, the articulated hip and tail. Some of the armor remained in place, and the preservation was delicate enough to include skin impressions and the long ossified tendons that helped support the ankylosaur’s tail. If only the front half had remained intact!

This partial skeleton wasn’t the first ankylosaur to be found in the Late Cretaceous of North America. But, Parks wrote in his report, the animal’s tail club was “distinctly different from any previously described and, as far as I am aware, from any that have been collected.” Based on this slender oval of bone and other features, Parks distinguished the skeleton as Dyoplosaurus acutosquameus. And while the front half of the animal was almost entirely missing, the detail of the back half gave paleontologists a detailed look at how the armor, bones and tendons of ankylosaurids were arranged.

Then researchers sunk Dyoplosaurus. In 1971, in a huge revision of the ankylosaurs, paleontologist Walter Coombs proposed that Dyoplosaurus was not so unique as Parks had proposed. A jaw fragment found with the original Dyoplosaurus specimen was virtually identical to part of a jaw referred to the more famous armored dinosaur Euoplocephalus, Coombs wrote, and therefore Parks’ dinosaur should be considered a Euoplocephalus.

Since this other ankylosaur was named on the basis of even more fragmentary material, the addition of the “Dyoplosaurus” specimen gave paleontologists a new reference for what the hips, tail, and armor of Euoplocephalus looked like. More than that, the find extended the range of Euoplocephalus through Alberta’s Late Cretaceous rock. The “Dyoplosaurus” material was found in a roughly 76-million-year-old park of the Dinosaur Park Formation, and bones referred to Euoplocephalus had also been found in the geologically younger Horseshoe Canyon Formation. Altogether, Euoplocephalus seemed to persist for almost ten million years–quite a feat given that many neighboring genera and species of dinosaur came and went during the same span of time.

As paleontologists found additional ankylosaurs and compared previously discovered material, though, it became apparent that Euoplocephalus had become an osteological umbrella that was hiding more than one dinosaur genus. Indeed, since the original Euoplocephalus material consisted of a partial skull and a half ring or neck armor, it was difficult for paleontologists to compare and accurately refer specimens when there was a lack of overlapping material. As researchers investigated more complete material that was undeniably Euoplocephalus, it became apparent that other specimens from a wide range of time and displaying a wide range of variation had been incorrectly assigned to this dinosaur. Among the incorrectly lumped dinosaurs was Dyoplosaurus.

Ankylosaur expert Victoria Arbour and her colleagues resurrected Parks’ ankylosaur in 2009. While the anatomy of the animal’s skull fragment wasn’t easily distinguishable from the original Euoplocephalus fossils, details of the hips and vertebrae, especially in the tail, distinguished Dyoplosaurus from all other ankylosaurs. From the hips back, Dyoplosaurus was a distinct dinosaur.

Despite what Parks had written, though, Arbour and her coauthors cautioned that the tail club of Dyoplosaurus was not an easy-to-spot difference. As far as paleontologists know now, ankylosaurid dinosaurs were not born with tail clubs. The osteoderms that formed the bludgeon grew later in life, and, since Parks’ Dyoplosaurus specimen was relatively small compared to Euoplocephalus specimens, it’s possible that the dinosaur’s tail club had not finished growing. When comparing dinosaurs, it’s always important to keep the animal’s stage of development in mind–features that may seem to characterize a new species may only indicate immaturity.

Other ankylosaurs are probably hiding within Euoplocephalus. Properly identifying and categorizing them will take years. Studies of hadrosaurs, ceratopsians, tyrannosaurs and other dinosaurs have shown that Late Cretaceous dinosaurs on the western subcontinent of Laramidia–isolated from their eastern cousins by the vanished Western Interior Seaway–that the genera and species differed along the latitudes. Rather than finding the same dinosaurs from Alberta to Utah, paleontologists have found distinct assemblages of dinosaurs that belie isolated evolutionary pockets. And analyses of Canada’s Late Cretaceous species have tracked turnover patterns among the dinosaurs, timing the pulse of evolution and extinction. Splitting out Dyoplosaurus is one more step towards understanding what North America’s dinosaurs can tell us about how evolution works.

Want to know more about other unsung dinosaurs? Check out previous entries in the Dinosaur Alphabet.


Arbour, V. Burns, M. Sissons, R. 2009. A redescription of the ankylosaurid dinosaur Dyoplosaurus acutosquameus Parks, 1924 (Ornithischia: Ankylosauria) and a revision of the genus. Journal of Vertebrate Paleontology 29, 4: 1117–1135. doi:10.1671/039.029.0405

Parks, W. 1924. Dyoplosaurus acutosquameus, a new genus and species of armored dinosaur; and notes on a skeleton of Prosaurolophus maximus. University of Toronto Studies Geological Series 18: 1–35.
