Could This Low-Cost Device Provide Clean Drinking Water To Those In Need?

Engineers have created an upgraded solar still that uses carbon paper and the sun to purify water at an unprecedented rate

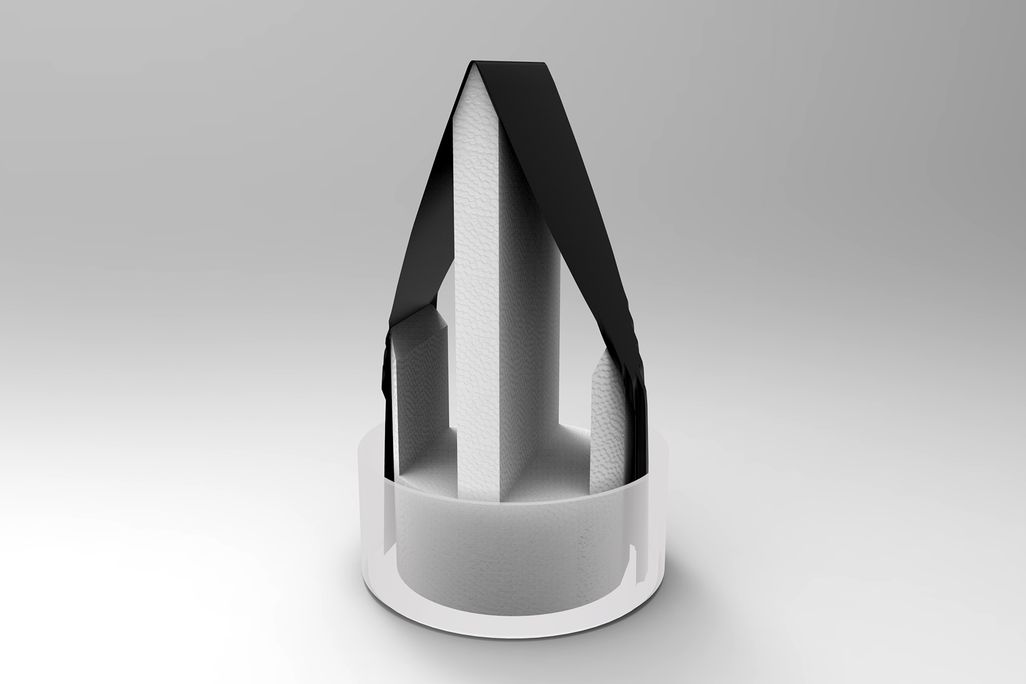

solar still.jpg
The new water purification technique involves draping a sheet of carbon-dipped paper in an upside-down "V." The paper's bottom edges soak up water, while the carbon coating absorbs solar energy and transforms it into heat for evaporation. Huaxiu Chen

Worldwide, some 850 million people lack access to clean drinking water. Contaminated water transmits a huge variety of diseases, including cholera, dysentery and typhoid, causing more than half a million deaths a year.

Researchers at the University at Buffalo have developed a solar water purifier they hope can sanitize water more quickly, cheaply and effectively than other models.

“Solar energy is basically free,” says Qiaoqiang Gan, a professor of engineering who led the research. “In some countries in tropical areas, they are short of resources but they have an abundance of solar energy.”

The design looks more or less like a small A-frame tent. Black carbon-dipped paper is draped over a triangular form and set on top of the water. The edges of the paper trail in the water, soaking it up like a sponge. It’s a modernization of the ancient technology of the solar still, which uses solar energy to evaporate water and leave contaminants behind. The water vapor then cools, condenses and can be collected. Gan’s team improved the design of the solar still, making it more efficient by giving it a sloped shape—this keeps the paper cool, since light hits it at a slant instead of directly. Since the paper stays below the ambient temperature, it draws heat from its surroundings, which makes up for the loss of solar energy during the vaporization process.

The device can evaporate about 2.2 liters of water per hour for every square meter of paper hit by the sun. This is more efficient than other solar-powered water purifiers, Gan says.

The research was described in a paper published earlier this month in the journal Advanced Science. The work, funded by the National Science Foundation, was a collaboration between University at Buffalo, the University of Wisconsin-Madison and Fudan University in China. The first authors on the paper were Haomin Song and Youhai Liu.

Could This Low-Cost Device Provide Clean Drinking Water To Those In Need?
Researchers Qiaoqiang Gan, Zongmin Bei and Haomin Song were among the authors of the new study. The three engineers and their colleagues are working to bring the solar still to those who need it through their startup, Sunny Clean Water. Douglas Levere/University at Buffalo

Gan and his colleagues have set up a company to commercialize the technology. Their prototype can condense and collect between 10 and 20 liters every day in full sun conditions, Gan says. As the average adult woman needs about 2.7 liters of fluid per day and the average man needs about 3.7, some 80 percent of which comes from drinks, the still could in theory provide enough daily drinking water for a family. Gan estimates it will cost about $200 and will be available within a year or so.

Gan hopes the device will be cheaper than similar technologies developed in recent years, many of which rely on expensive nanomaterials. Stanford scientists have created a tiny water filter using "nanoflakes" of molybdenum, several companies have been looking at using nanocellulose for water treatment, while a Tanzanian engineer's nanofilter won the African innovation prize from the UK Royal Academy of Engineering. In contrast, the solar still uses inexpensive and widely available carbon paper.

The device can be used on any kind of water surface—a lake, a pond, a trough, even the ocean. But how it works will depend on the setting.

“The major challenge is different people in different areas have local needs,” says Gan, who just returned from a fact-gathering trip to Argentina. “Especially if the source water quality is very different.”

For example, if the still is used on the ocean, salt will eventually accumulate on the surface. This and other design challenges are still being worked on.

The still can remove nearly 100 percent of bacteria, viruses and organic compounds like arsenic, Gan says. It does less well with certain volatile chemicals, including certain pesticides, which are evaporated up with the water rather than left behind.

“It looks like it has some serious promise to it,” says Desmond Lawler, an engineering professor at the University of Texas at Austin, of the system.

Lawler says one major consideration will be the humidity of the environment where the still is used. In very humid conditions—think the Caribbean after a hurricane—it’s much harder to evaporate water. The team will need to take this into consideration when designing systems for specific locations.

Though he doesn’t imagine the system being a substitute for more permanent clean water sources, Lawyer says he finds the simplicity of the system promising.

“A small-scale system that could create drinking water for a family,” Lawler says. “It's very exciting to think about, particularly for emergency situations.”
