The Curse of the Cargomaster

Readied to transport the first U.S. ICBMs, the Douglas C-133 had a peculiar habit. It kept crashing.

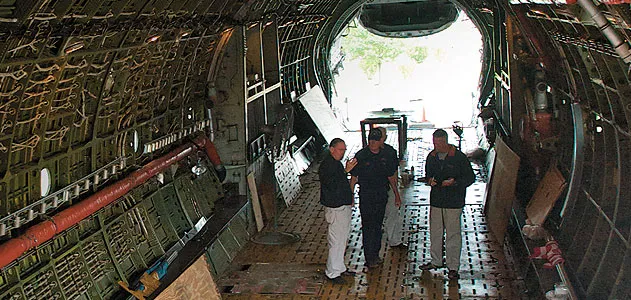

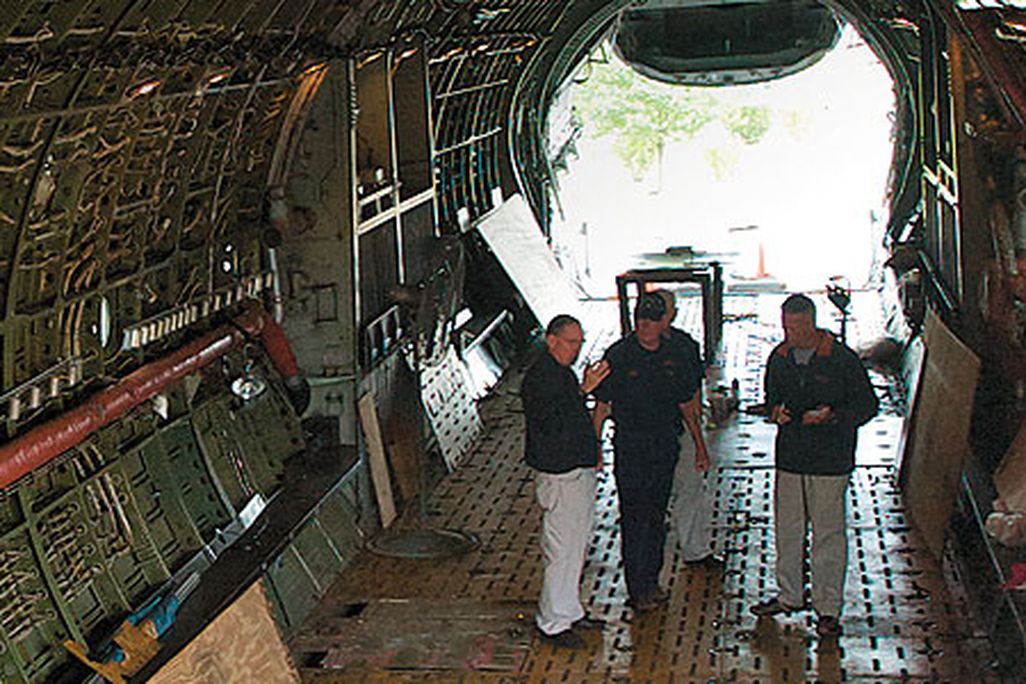

In the 86-foot-long cargo bay, former crewmen recall the hardware a C-133 could lift.
In the 86-foot-long cargo bay, former crewmen recall the hardware a C-133 could lift. Mark Duehmig

They’d fly it again, if they had the chance. Among the group gathered at Delaware’s Dover Air Force Base, there’s a man for every crew station at the ready. They flew, maintained, navigated, and sometimes cursed one of the least understood aircraft in the history of the U.S. Air Force, the Douglas C-133 Cargomaster. In a conference room at Dover’s Air Mobility Command Museum, papers are shuffled—Where was that article from the base news? Smudgy documents, their margins trailing off the page from copy-of-a-copy-of-a-copy Xeroxing, are offered. A small stack of VHS tapes forms a centerpiece. The men, some slowed by age and ailment, chatter and argue. A clamor of “There I was” stories fills the room, accompanied by hand flying. Then, with quiet authority, Hank Baker, a retired C-133 flight engineer, holds his hand up, as if to take an oath.

“Let me tell the story, please,” Baker says, silencing the room. The men defer. Baker describes his dogged negotiations to bring the C-133B from display at the former Strategic Air Command museum in Offutt, Nebraska, to the ramp outside, an effort that has made him a C-133 honcho at Dover. After his introduction, jackets are gathered; pants hitched up. We stroll outside in the chill rain to walk around the last Cargomaster to leave the production line. I can see why the crewmen are proud of it: the majestic tail, impressive expanse of wing, elegantly streamlined engines, and thin, rapier props. This is a serious lifter of missiles, trucks, tanks—anything, really. But when we come to the nose, the face is a surprise: a clown visage with a ridiculous radome.

“In the early days of moving large cargo, we had to learn a lot of it as we did it,” says Baker. “And, we didn’t know a lot about what things weighed…especially when they saw that you could move other things besides a missile.”

The C-133 was developed by the Douglas Aircraft Company at a time when the Air Force was in a hurry to deploy intercontinental ballistic missiles to bases around the country. The big turboprop, which first flew in 1956, had a cargo bay big enough to carry an Atlas or Titan ICBM, but to make loading them easier, Douglas modified the original design with clamshell doors to increase the size of the opening in the aft fuselage.

Dover’s Cargomaster is parked next to its older, smaller cousin, the Douglas C-124 Globemaster. Many C-133 aircrew transitioned from the lumbering and unpressurized C-124, called Old Shaky by its crews and dragged aloft by four brutish Pratt & Whitney R-4360 engines—each a deafening whirl of connecting rods, pushrods, and 28 pistons the size of coffee cans.

“I had thousands of hours in the C-124—flying through weather at 10,000 feet,” says Harry Heist, a retired navigator and Dover volunteer. “When I transitioned to the C-133—pressurized, flying above the clouds—I felt like I had been born again.”

Baker and Sandy Sandstrom, a former flight engineer, fire up a diesel-engine external hydraulic power unit, and Sandstrom boards the crew ladder and disappears into the fuselage. Soon there’s a loud pop, and the rear clamshell doors slowly begin to part. They reach the end of their travel and stop with a shudder. We climb the aft ramp into the bay, and Baker recalls that often during fuel stops, a random piece of equipment—a truck, maybe an artillery piece—would appear at the back of the aircraft. Could it fly? “Our motto was, ‘Anything that’ll fit in the hole,’” says Baker.

After a tour of the cargo hold and cockpit, we climb down the forward boarding ladder. Baker squats next to where the Cargomaster’s nosewheel strut pokes out of the fuselage. In a loaded airplane, the more weight above the strut, the less of the smooth, machined inner cylinder would be visible, he says. “We’d look at the nose strut—the usual deflection was a pack of cigarettes. If it was less, the load was too far forward. If it was more, it was too far to the rear.”

Sandstrom shuts down the ground unit, and the pitch of the big diesel engine spirals down. The shouting stops, and as the men resume talking, the discussion turns to what the crews who flew and maintained the big airlifter inevitably end up talking about.

The crashes.

It was another cool Dover morning, April 13, 1958, when a four-man crew from the 39th Air Transportation Squadron rode the flightline van to C-133A tail number 40146. At 8:28 a.m., 40146 lifted off the runway behind what is today the museum hangar. The crew transmitted routine messages at 8:34 and 8:40. Three minutes later and 26 miles south of the base, the airplane fell inverted from the sky into Ellendale State Forest.

The Air Force grounded the C-133 fleet. It had been only 24 months since the first flight at the Douglas facility in Long Beach, California. Acquired under a new system of concurrent development and production, an Air Force attempt to limit procurement costs and delays, the C-133 program had no prototype phase; the aircraft had gone from drawing board to production line. Although the first eight airframes underwent flight tests at Edwards Air Force Base in California, most of the testing coincided with aircraft deliveries to operational units. Modifications were made throughout the Cargomaster’s service life.

A team of accident investigators assembled at Dover. Most of their theories centered on a nastiness the Cargomaster had exhibited during its earliest tests: The aircraft gave its pilots virtually no warning when it stalled. The buffet that accompanies a stall, which in most aircraft serves as advance notice, arrived in the Cargomaster almost simultaneously with the stall itself. Tests also showed that abnormal airflow over the horizontal stabilizers could render the elevators ineffective. In early 1957, a fix was incorporated into the eighth aircraft built and retrofitted on the previous seven: a horizontal “beaver tail” that extended behind the vertical stabilizer helped to keep the airflow over the control surfaces smooth and to counter the airplane’s tendency in a descent to tuck under. But 40146 already had those modifications. Why did it crash? Although the investigators couldn’t report a definitive cause, they identified 17 deficiencies in the C-133’s control system that could have been contributing factors, and a team of Douglas engineers traveled to Dover to correct them. A month later, the airplane resumed operation, and all was well—for three years.

The next two Cargomasters to go down simply disappeared during overwater passages. The first, an aircraft headed for Midway Island, and then home to California’s Travis Air Force Base, left Tachikawa Air Base in Japan one minute before midnight on June 9, 1961. Twelve minutes after a normal takeoff, followed by a routine radio call, it was gone. Less than a year later, on May 27, 1962, number 71611 departed Dover, then dropped from the radar shortly after the pilot reported passing through 13,000 feet. In the two accidents, 14 crew members died.

The C-133 began to get a reputation, and crews listened intently for any signal of a stall, especially during climbout when the aircraft, full of fuel, was heaviest. Sandstrom and other Cargomaster crewmen found that the airplane had a subtle stall warning device: the windshield wipers. “When we’d enter a stall, the windshield wiper would vibrate,” Sandstrom says. “If you saw that, you better be putting the nose down.”

But what if, on the next mission, you missed the Cargomaster’s whisperings? What would it feel like to be pinned against the straps, watching helplessly as the ocean filled the windscreen?

After a departure from Chateauroux Air Base, France, pilot John Burnett was settling in for a long flight. “I was making my radio calls and noticed the airplane shudder a little bit,” he says. “The pilot in the left seat was moving the controls and nothing was happening. I yelled out that I was going for 15 degrees of flaps—we regained control of the airplane, dumped fuel, and returned to Chateauroux.”

Instead of a stall, Burnett believes the elevators were partially blanked out—much as the earliest Edwards tests had demonstrated was possible. In fact, both cockpit airspeed indicators showed that the aircraft was operating well above stall speeds. “If you put the tail down into the turbulent flow from the wing, you lose elevator control,” says Burnett, who was a C-133 flight instructor and examiner. What would happen to a less experienced pilot—perhaps with only seconds to react?

On April 10, 1963, the remains of another C-133 could be seen scattered across a field outside Travis. The mission had been a training sortie for two young lieutenant pilots. An experienced examiner pilot was in the right seat. One of the crew made a radio call acknowledging a runway change, the aircraft entered a steep turn, and then they were gone. Five months later, another C-133 departing from Dover disappeared over the Atlantic.

“It was the talk of the airlift career field,” says retired lieutenant colonel Herbert Nakagawa, who was a navigator trainee in 1965 and accumulated 4,500 hours in the C-133. “I got that assignment [to the C-133] in nav school. One of my instructors came up to me and said ‘It’s been nice knowing you.’ And, he was serious.”

Delivering outsized cargo all over the world, Cargomaster crews were flying thousands of uneventful hours. Still, the drumbeat of accidents continued. “There was sort of a mystique around the aircraft,” says Nakagawa. “It had a reputation as mysterious, since a lot of them just disappeared.”

If you were headed home on leave and waiting in a passenger terminal to fly space-available, would you take the seat on the Cargomaster running up outside, or wait for whatever came along next? “There were a lot of people who were really scared to fly in it,” says Nakagawa. “And there were people who [did] even though they were apprehensive.” But Cargomaster crews, says Nakagawa, “wanted to make it work. They were dedicated to it.”

“I was never scared of it,” says Burnett, who instructed many of the crews at Dover. “It seemed to me that the more we could learn about it, the better we’d be. But I respected it.”

In 1963, a full-scale investigation of the Cargomaster, the first of many, was convened at the Warner Robins Air Materiel Area in Georgia to help Military Air Transport Services study the five C-133 crashes. “They convened everybody,” says Cal Taylor, a former Cargomaster navigator and perhaps the airplane’s most knowledgeable historian. “The airplane builder, MATS… [they got] everybody involved to figure out what was going on.”

“We had some of the best minds in aeronautics working on the problems of the C-133,” says Sandstrom. “I took an airplane down to Warner Robins and while it was down there, they tore it completely apart. They put it all back together, and I was sent down there to preflight it. It flew just like it did when we flew it down there. They didn’t figure out anything.”

Roy Isaacs was a young structures engineer at Douglas when the first C-133 rolled off the line in 1956. He remembers one Air Force requirement stating that the airplane, when fully loaded, would be able to clear a 50-foot obstacle at the end of a 10,000-foot runway. “We had to redesign all the sections of the airplane three times,” Isaacs recalls, “and we had to lighten [the airframe] and get the weight down to accommodate the engines. Consequently, it made the airplane have a bunch of problems. That engine is the downfall of the C-133.”

That engine was the Pratt & Whitney T34, the only turboprop available at the time that could get an airplane as heavy as a fully loaded Cargomaster off the ground. During cruise, the engines ran at a constant speed. To vary the thrust, a governor inside the propeller’s nose case (located aft of the propeller blades) changed the blade pitch. When the pilot pushed the throttles forward to increase power, the governor angled the propeller blades to take a bigger bite of air. The mechanism in the nose case was in turn governed by a complex, electrically controlled system that synchronized blade pitch among the four engines.

“You could have a prop malfunction, and a number of things could cause it,” says Ken Kozlowski, a former C-133 crew chief who served as chief mechanic and flight engineer on a privately owned Cargomaster that flew until 2008. Through monastic devotion to understanding every system on the C-133 and by developing his own maintenance procedures, Kozlowski kept the civilian Cargomaster flying as a bush airplane—and slamming onto remote Alaska gravel runways—nearly 40 years after the Air Force let it go.

Minute changes in engine performance, coupled with changes in altitude, airflow, or synchronization, kept the nose case mechanism constantly working to maintain optimum blade angle. At higher altitudes, the props had to increase pitch to move the same amount of air; at lower altitudes, the pitch needed to be reduced. Thomas Kaye, who was an Air Force hydraulic mechanic stationed on Midway, remembers seeing Cargomasters arriving from Japan that had been four-engine transports on takeoff but had only three engines operating by the time they landed. Once, a C-133 showed up with only two engines. It had been able to stay aloft only because the flight engineer injected a water-alcohol mixture (a standard takeoff booster) when the airplane was threatening to head toward the waves.

“The nose case [governor] would go,” says Kaye. “The pitch was constantly changing to keep the [propellers] phased, and it was constantly loading and unloading the gearing in the nose. What they did later on was put a little time-delay relay and slowed the pitch changes down, which relieved the excessive load on the nose cases.”

Propeller-system failures, along with the still-worrisome stall characteristics, were key suspects in two more crashes. After the second accident, the Air Force again grounded all the Cargomasters. Between April and August 1965, additional C-133 flight testing was conducted at Edwards. With Douglas engineer Roy Isaacs aboard many of the flights, the dangerous stall characteristics were confirmed, and investigators focused on how to prevent the Cargomaster’s now-infamous right-wing rolloff. Cameras trained on tufts installed on the wings clearly showed the right wing stalling before the left—in fact, the left wing usually didn’t stall at all.

The way to keep the Cargomaster from rolling onto its right wing during a stall turned out to be depressingly simple. “What we ultimately came up with was a triangular piece of sheet metal that we put on the leading edge of the left wing between number-one and number-two engines,” says Isaacs. Called a stall strip, the modification disrupted airflow over the left wing and caused it to stall when the right wing did. The modification was made at Dover and Travis to all aircraft in the fleet. Test pilot “Skip” Johnson test flew every airframe to ensure the strips—which were first temporarily attached to the left wing—were in the correct position so that when the aircraft was stalled during a test, the left and right wings stalled simultaneously. As if to demonstrate that the Cargomaster would never reveal all its secrets, one Dover C-133 snapped into a violent left roll during a test flight after its stall strip was attached. Of the 42 C-133s left in the fleet, it became the only one to sport a stall strip on its right wing.

Senior MATS officers then took the sum total of knowledge about the Cargomaster’s tendencies on the road. “They had a mandatory briefing for all aircrews in the base theater at Travis and at Dover,” Cal Taylor says. By the late 1960s, the stall strip and better aircrew training improved the airplane’s survivability. But because the propeller control system was still prone to fail, and airframes began to fatigue—a problem that would persist until the aircraft was retired in 1971—two more Cargomasters crashed.

Herbert Nakagawa remembers what his aircraft was carrying on April 30, 1967, and it hardly seemed worth his life. “The cargo was basically garbage—old drop tanks, miscellaneous old junk,” he says. “We spent the night on Okinawa and the next day we were going to Midway.”

The weather was fine—scattered clouds. After takeoff and climb to 12,450 feet, the number four propeller began to malfunction. The pilots shut the engine down, feathered the prop, and turned back toward Okinawa’s Kadena Air Base. One of the flight engineers attempted a last-ditch fix. “Master Sergeant Ray Wetzel went behind the engineer’s panel to jiggle with the propeller control system,” says Nakagawa. All four propellers received electrical power through a single circuit that also controlled the pitch regulator. The circuit sparked and failed, and the props were locked at an angle too high for lower altitudes. Wetzel ran to strap in to one of the airline-style seats in back—what some consider the most survivable area in a crash. “At 2,500 feet, all three [remaining] engines flamed out,” Nakagawa says. “Fortunately, we still had airspeed, and we still had control of the airplane. When we hit, I was amazed I had survived. The airplane broke in half right in front of the wings. We had vests on, and we gathered together by the floating nose wheels. The copilot had bought all these cheap Japanese golf balls and while we were bobbing there, all these golf balls came floating up around us.”

Once all nine crewmen had been rescued, they formed an exclusive club: the only airmen to survive a Cargomaster crash.

After Nakagawa’s crash, one more Cargomaster fell. On February 6, 1970, a C-133B left Travis to deliver a Vietnam-scarred CH-47 Chinook to Harrisburg, Pennsylvania. After cruising at 21,000 feet and with clearance granted for a climb to 23,000, Cargomaster 90530 broke up in flight. The majority of the debris fell on a field outside Palisade, Nebraska.

Roy Isaacs flew to Nebraska to help with the investigation. One day, standing on the stage of the town’s National Guard armory and looking at the wreckage that had been assembled there, he noticed something. “You could see all the jagged pieces, but here was a straight line by the side cargo door,” he says. Isaacs used a jeweler’s loupe to examine the edge of a long split about a foot above the side cargo door. Clearly, the metal had fatigued and failed. The crack had blown out a section of fuselage, which entered the arc of the number-two propeller.

C-133 maintainers found fatigue a continuing challenge, especially because air coming off the near-supersonic tips of the propellers produced vibration. To prevent further airframe stress failures during the last 17 months of the Cargomaster’s service, ground crews attached 16 “belly bands,” four-inch metal straps, around the exterior of the fuselage.

“The fact that we tried to compromise the airplane by reducing the skin gauges and the gauges of the longerons—we had an airplane that was too flexible,” Isaacs says today. “I feel the company would be rather cautious in admitting it then, but now, in retrospect, it’s hard to come up with anything different. Unfortunately, the airplane’s reputation suffered, but all in all, the airplane met the 10,000-hour service life requirement. They did a tremendous job for the Air Force.”

Was the Cargomaster dangerous? Ten had crashed, and 61 men had been killed. In 1964, the C-133’s accident rate per 100,000 flying hours stood at 2.7, while the C-130’s was 1.9. The overall Air Force rate was 7.7. The C-133 had supported operations around the globe, and was even trusted with transporting Apollo command modules after they returned from the moon.

The debut of Lockheed’s C-5A Galaxy brought an unceremonious end to the C-133’s service. “On the first of January, 1971, we all walked across the street and into an empty building and we became the 9th Airlift Squadron,” says pilot Larry Phillips. “All the guys who walked across the street that day were -133 people.”

At Dover and Travis, both steeped in the heritage of airlift triumphs like the Berlin Airlift and the re-supply of Khe Sahn, the Cargomaster is a hero. “In general, the [C-133’s] biggest contribution is its development of the pattern of the modern cargo airplane, with a high wing and rear ramp,” says James Stemm, a curator at the Pima Air & Space Museum in Arizona. “The Cargomaster was the first application to a long-range heavy-lift aircraft. It leads pretty directly to the Lockheed C-5 Galaxy and the Boeing C-17 Globemaster III.”

The last time a C-133 flew was in 2008, when Ken Kozlowski’s Cargomaster, N199AB, traveled from Alaska to California to become part of the Travis Air Museum’s collection. “We always knew we were operating an airplane with a bad reputation,” says Kozlowski. “But it always got us home. That airplane never hurt anybody.”

At Dover, Baker and his crew have pointed out unique features on the cockpit control panels and flight engineer’s station, the cargo compartment’s miles of wiring harnesses, air and hydraulic lines, and cables that pass through the fuselage ribs; the high wing; the squat landing gear…. The rain is still coming in waves. Baker and Sandstrom grimace against the cold and button up the C-133. Sandstrom stows the forward crew ladder and closes the access panel. Both men give the Cargomaster a backward glance, then head inside.

John Sotham is a former associate editor at Air & Space/Smithsonian. Further reading: Remembering an Unsung Giant: The Douglas C-133 Cargomaster and Its People, Cal Taylor, Firstfleet Publishers, 2007.

Properly configured, five UH-1 Hueys could hitch a ride on a C-133 — in the 1960s, from Texas all the way to Vietnam. NASM (9A01432)
The last airworthy C-133 squats at an Anchorage, Alaska airport, where from 1978 to 2008 it earned its keep delivering bulldozers, schoolbuses, and other equipment to remote areas. 176th Wing Alaska Air National Guard/LT. John Callahan
The sixth Cargomaster crash, in 1964, killed seven crewmen and left wreckage near Goose Air Base, Labrador. Probable cause: Wing icing that led to a stall. USAF/Benn Wittermann Via Cal Taylor
Former C-133 navigator Harry Heist considers a collection of Cargomaster papers, which include the puzzling accounts of nine crashes. Mark Duehmig
The eighth aircraft to fall broke in half when the pilot ditched in the East China Sea, but the crew survived. USAF Via Cal Taylor
18-foot props on the -133’s four engines moved a lot of air. Mark Duehmig
The B model’s clamshell doors offered greater clearance for oversize cargo. Mark Duehmig
A B-52 flies over an Atlas missiles base; both shared cold war duties with -133s. NASM (SI-95 8693)
Cargomasters delivered Titan missiles to their silos. Terry Wall
A Lockheed C-130 overflies a Cargomaster being prepped for display. From the -130, the much bigger Douglas got its drive-on, drive-off ramp and — to increase room for cargo — its wing set above the fuselage and landing gear in outboard blister fairings. 176th Wing Alaska Air National Guard/LT. John Callahan
From the navigator’s panel: a radar scope (left) and radio altimeter. 176th Wing Alaska Air National Guard/LT. John Callahan
Former flight engineer Hank Baker sits at his old station, with instruments for managing electrical, fuel, and deicing systems. Mark Duehmig
Of 50 Cargomasters built, one continued flying until August 30, 2008, when it arrived at California’s Travis Air Museum. USAF/Fristen Rohrer
