Making Robots That Can Work With Their Hands

For robots to be most useful when working alongside humans, they’ll have to literally lend us a hand when our own two are not enough

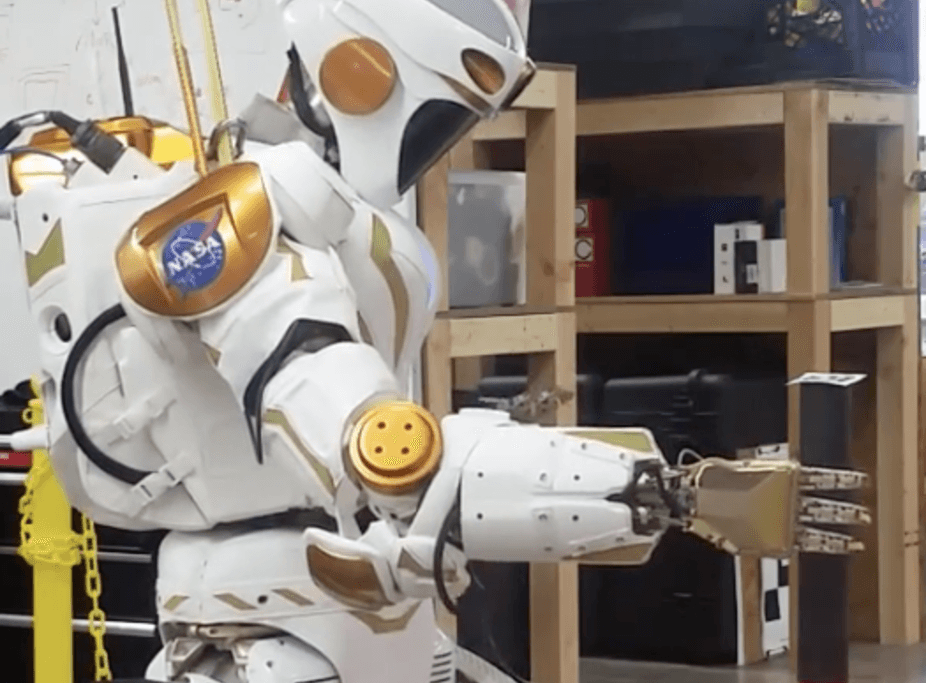

A NASA Valkyrie robot picks up an item with its hand.
A NASA Valkyrie robot picks up an item with its hand. Northeastern University, CC BY-NC

It’s quite common for humans – especially those who work in manufacturing – to tie a knot, strip the casing off a cable, insert a pin in a hole or use a hand tool such as a drill. They may seem like simple tasks, but are really very complex and involve extremely fine finger and hand motions.

Though robots are getting more and more involved in factory work and in a wide range of other types of jobs – including in the service industry and health care – their dexterity is not nearly as impressive. Since people first brought them to work in automotive factories more than 50 years ago, we have built robots that can weld, paint and assemble parts quite well. Today’s best robotic hands can pick up familiar objects and move them to other places – such as taking products from warehouse bins and putting them in boxes.

Atlas, The Next Generation

But robots can’t orient a hand tool properly – say, lining up a Phillips head screwdriver with the grooves on a screw, or aiming a hammer at a nail. And they definitely can’t use two hands together in detailed ways, like replacing the batteries in a remote control.

Valkyrie Cylinder Pickup

Human hands are excellent at those tasks and much more. To even come close to rivaling what our hands are easily capable of, robot hands need better agility, reliability and strength – and they need to be able to sense more accurately and move even more finely than they do now, to figure out what they’re holding and how to grip it best. For robots to be able to work alongside humans, we’ll have to figure out how to make robots that can literally lend us a hand when our own two are not enough.

My research group at Northeastern University is working on doing just this, in particular for humanoid robots like NASA’s Valkyrie, which has three fingers and a thumb on each hand. Each digit has knuckle-like joints, and each hand has a wrist that can rotate easily. We’re working on creating motions – combinations of arm, wrist, finger and thumb movements that collectively accomplish a task, like moving a wrench in a circle to tighten a bolt, or pulling a cart from one place to another.

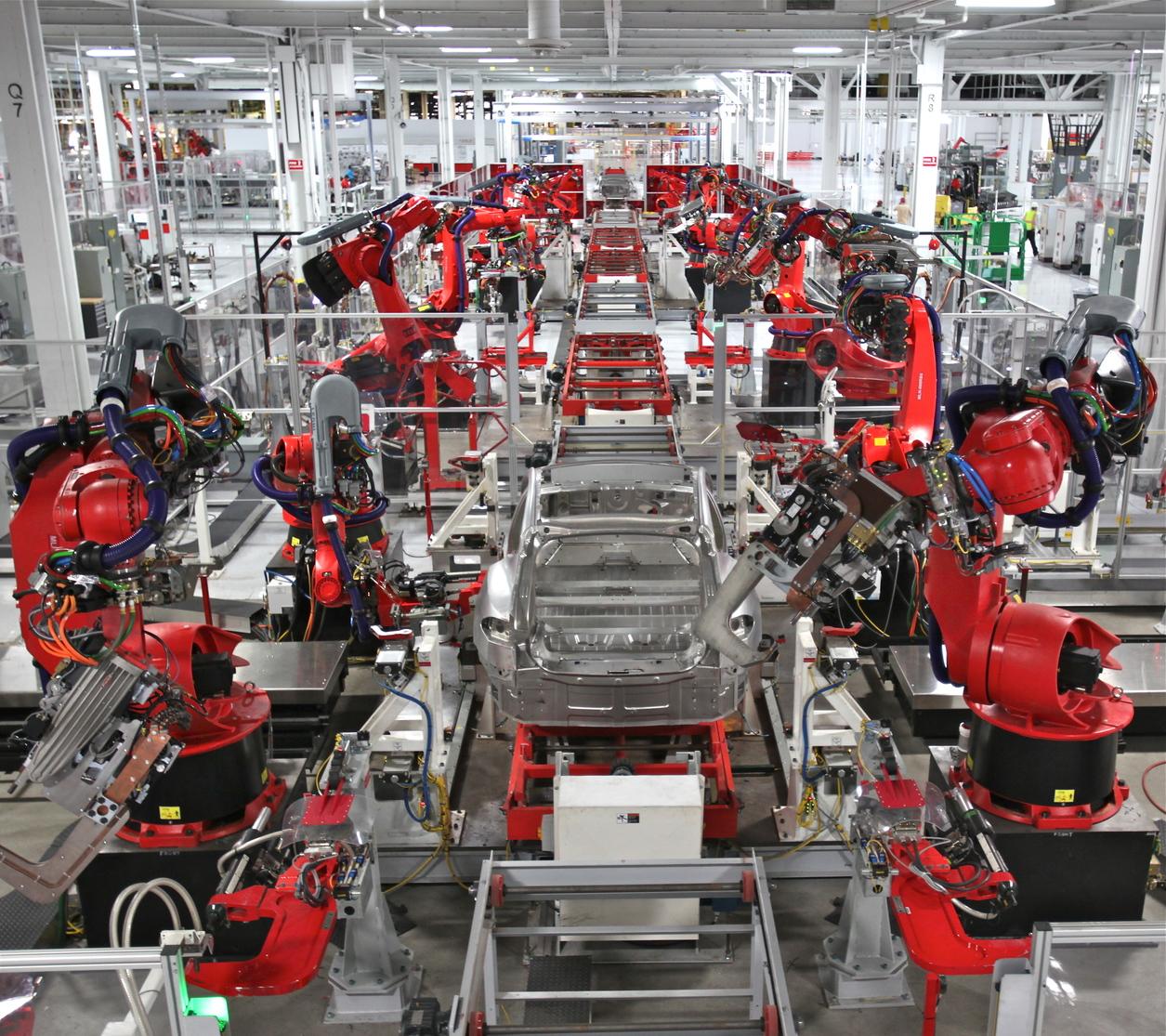

industrial robots
Each of these industrial robots has multiple specialized tools. Could many of their tasks be done by robotic hands? Steve Jurvetson/flickr, CC BY

The importance of hands

Rather than making each robot a custom machine tailored for a very specific task, we need to design multi-use robots, or even such capable machines that they might be called “general purpose” – good for almost any task. One key to the success of these types of robots will be excellent hands.

Our work focuses on designing a new class of adaptable robot hands capable of precise fine movements and autonomous grasping. When robots are able to hammer in nails, change batteries and make other similar movements – basic for humans but very complex for robots – we’ll be well on our way to human-like dexterity in robotic hands.

Achieving this goal also involves inventing new designs that incorporate hard and soft elements – the way human bone gives strength to a grip, with skin spreading the pressure so a wine glass doesn’t shatter.

Faster development and testing

Modern technological improvements are making the development process easier. With 3D printing, we can make prototypes very quickly. We can even make low-cost disposable components to try different arrangements of mechanisms, like two- or three-fingered grippers for simple pick-and-place tasks or anthropomorphic robot hands for more delicate operations.

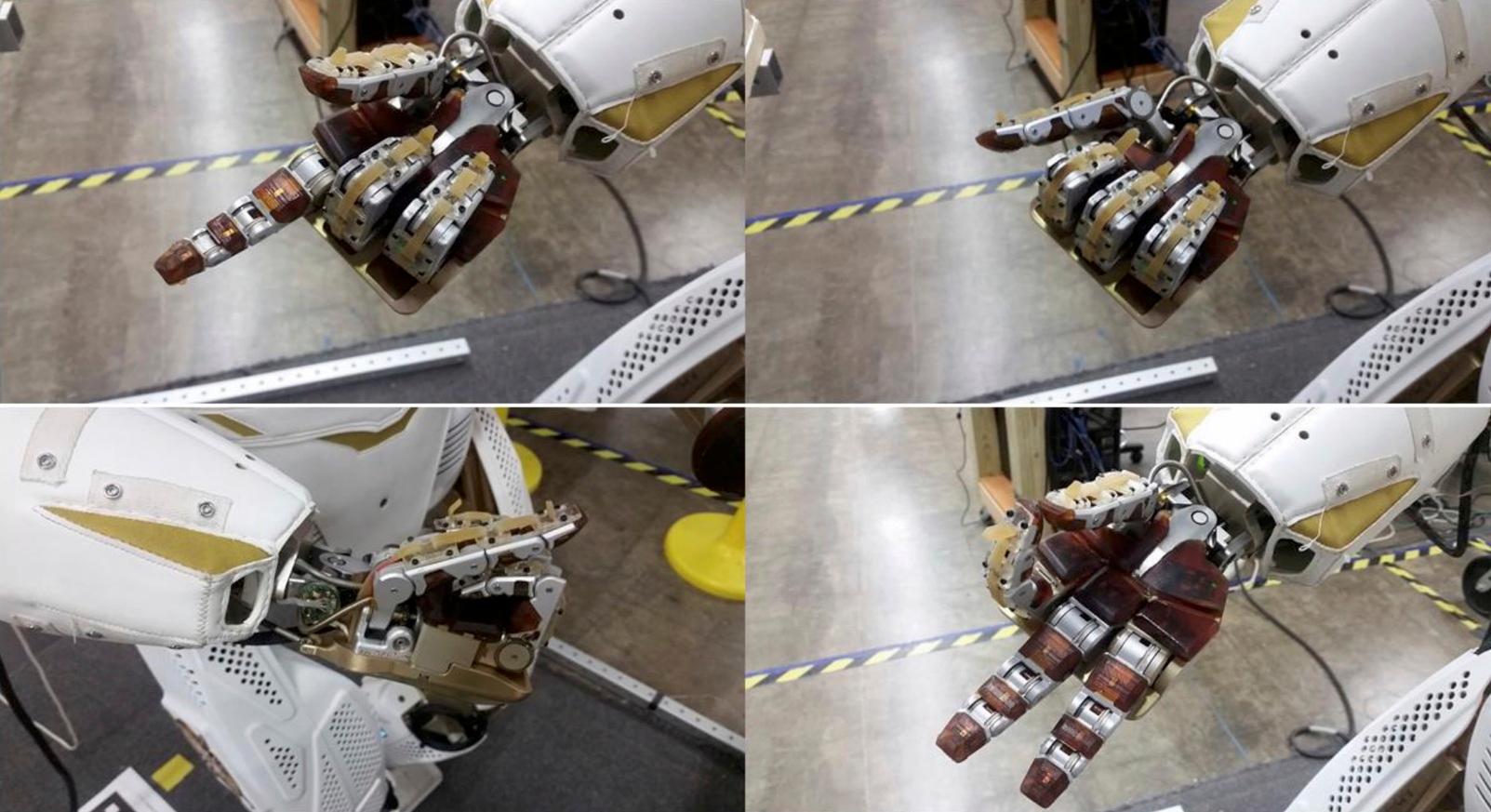

Different types of hands on a NASA Valkyrie robot.
Different types of hands on a NASA Valkyrie robot. Northeastern University, CC BY-ND

As electronic cameras and sensors get smaller, we’re able to incorporate them in new ways. For instance, if we put pressure sensors and cameras in a robotic hand, they can give feedback to the robot controller (whether human or automated) when a grip is secure, or if something starts to slip. One day they may be able to sense which direction the slipping object is moving, so the robot can catch it.

These abilities are already second nature to humans through vision and proprioception (the ability to sense the relative positions of body parts without looking or thinking about it). Once we’re able to achieve them in robots, they’ll be able to do things like detect if a grasp is too strong and is squeezing an object too hard.

80s Charmin Commercial featuring Robby the Robot

Planning coordinated movements

Another milestone will be developing methods for robots to figure out what motions they need to make in real time, including sensing what’s going on in their hands at each moment. If a robot hand can detect changes in objects it is handling, or manipulate items while holding them, they could help with those common manual tasks like knot-tying and wire-stripping.

Working with two hands together is even farther into the future, though it would provide a significant boost, particularly for manufacturing. A robot that can operate a drill with two hands or pass machine parts from one hand to the other would be big improvements, allowing factories to automate even more steps in their processes.

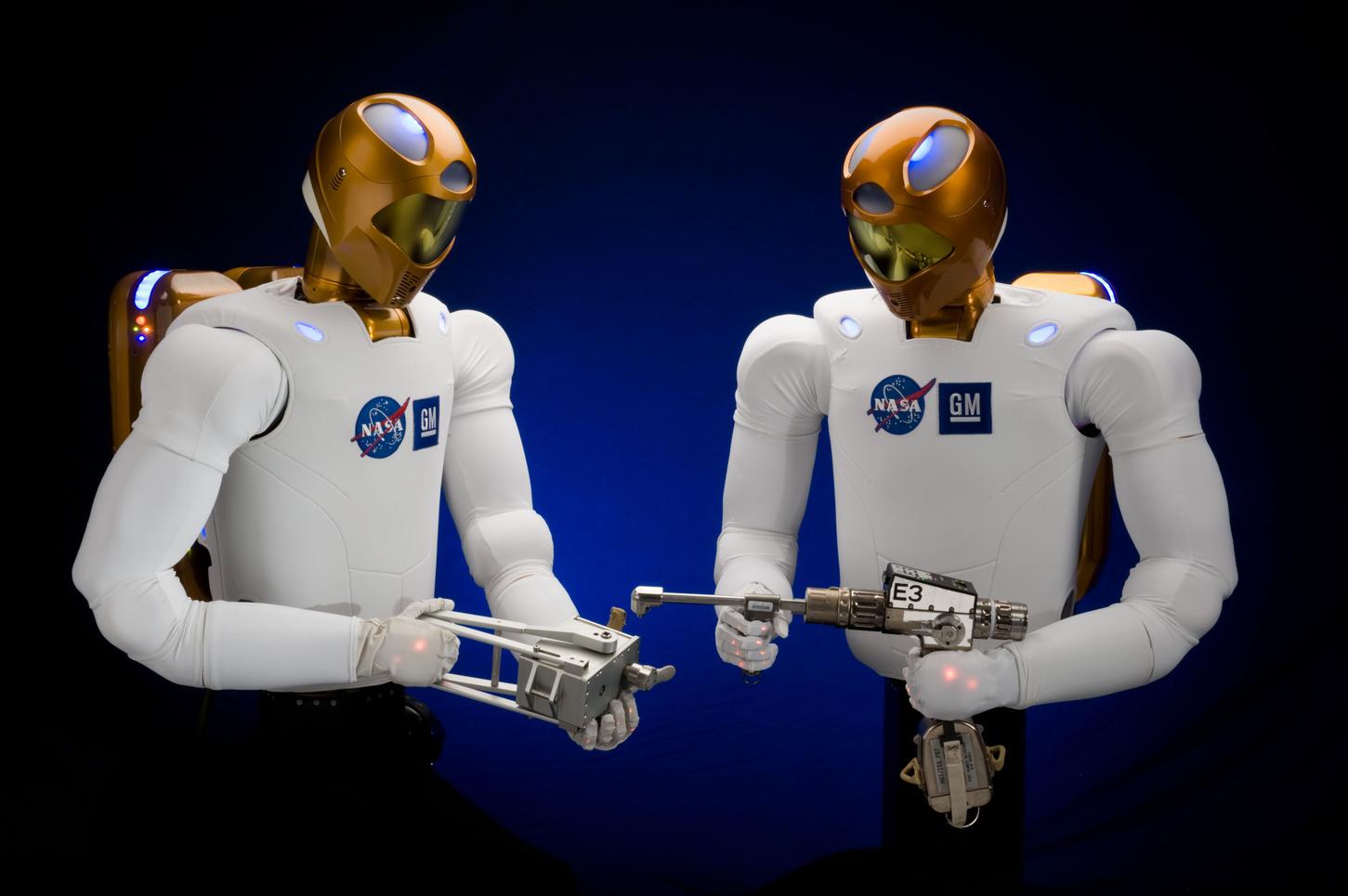

Is this the robot of the future?
Is this the robot of the future? NASA

We humans haven’t developed these systems yet. Achieving human-like autonomous robot dexterity will keep robotics researchers, technologists and innovators busy in the foreseeable future. It won’t slow down the ongoing robotics revolution in manufacturing, because current processes still have lots of room for automation to improve safety, speed and quality. But as we make robots even better, they’ll be able to give us a hand.


This article was originally published on The Conversation. The Conversation

Taskin Padir, Associate Professor of Electrical and Computer Engineering, Northeastern University
