Picture of the Week—Pentacene

If you've ever taken a chemistry class, you have seen plenty of diagrams of molecules. If you made it to organic chemistry, you fiddled with one of the tinker-toy-like molecule kits, building your own hydrocarbons and amino acids (I probably still have my kit somewhere). But we take it for granted ...

smithsonian.com
molecule




If you've ever taken a chemistry class, you have seen plenty of diagrams of molecules. If you made it to organic chemistry, you fiddled with one of the tinker-toy-like molecule kits, building your own hydrocarbons and amino acids (I probably still have my kit somewhere). But we take it for granted that the diagrams and models are correct; no one could photograph a molecule. Until now.

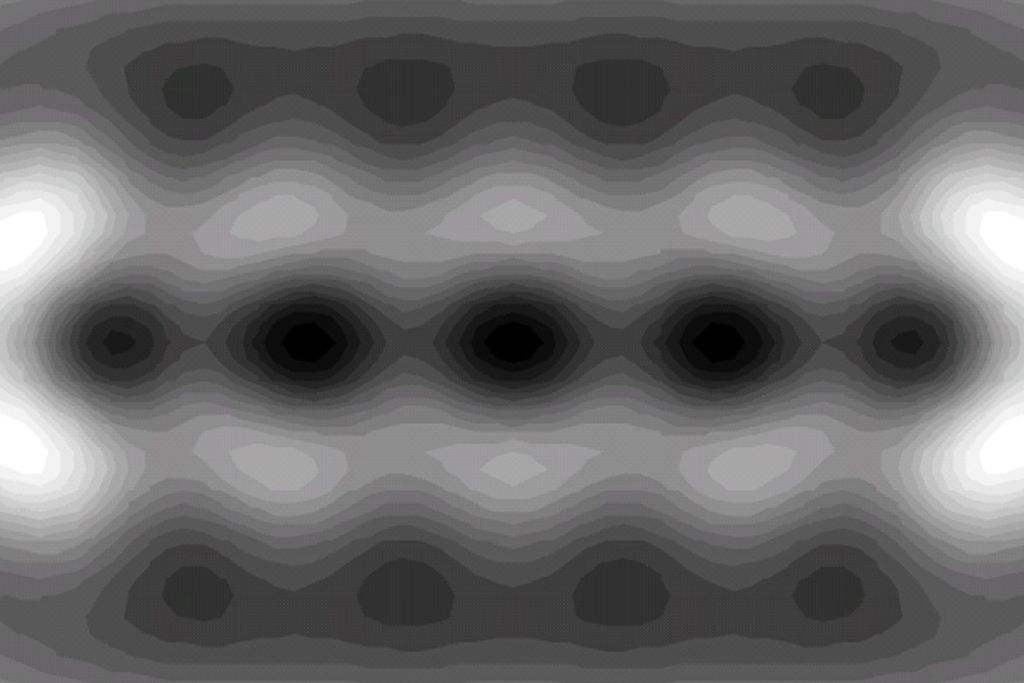

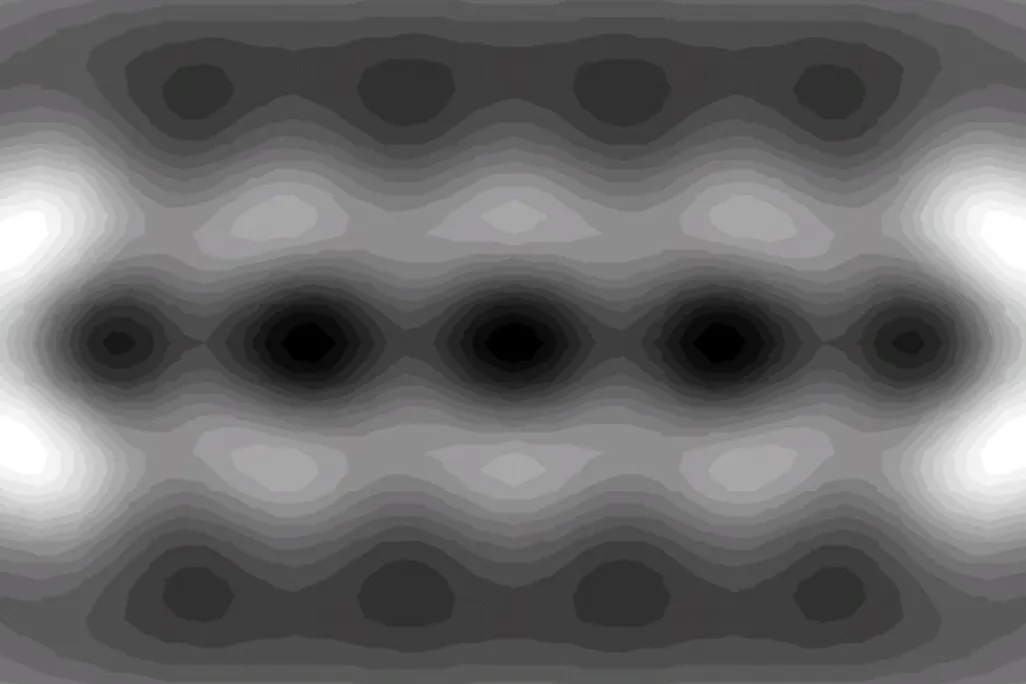

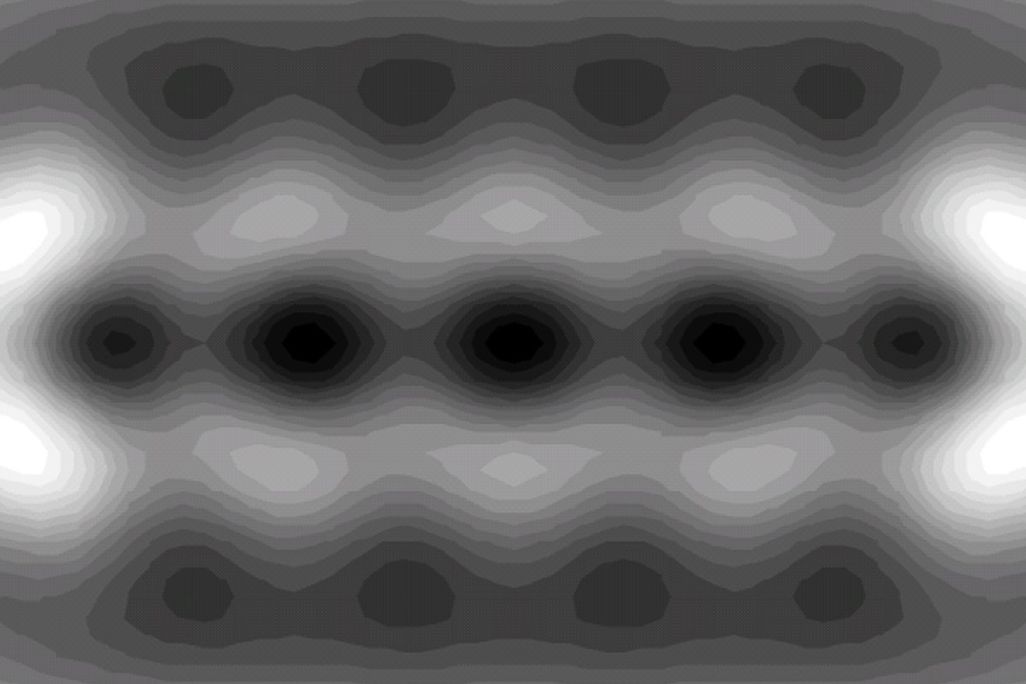

The picture above of a pentacene molecule was created by researchers from IBM's Zurich Research Laboratory and Utrecht University using a scanning tunneling microscope modified with a single molecule of carbon monoxide on its tip. (Their study appeared in last week's Science.) The image is not so much a photograph as a map of the molecule's energy, but each of the five benzene rings that make up the molecule can be seen.



Image courtesy of IBM Research-Zurich.



Check out the entire collection of Pictures of the Week on our Facebook fan page.
