Innovative Spirit

This Oven Could Change How We Cook

By using radio frequency technology, it can prepare all the components of a dinner, at the same time, just right

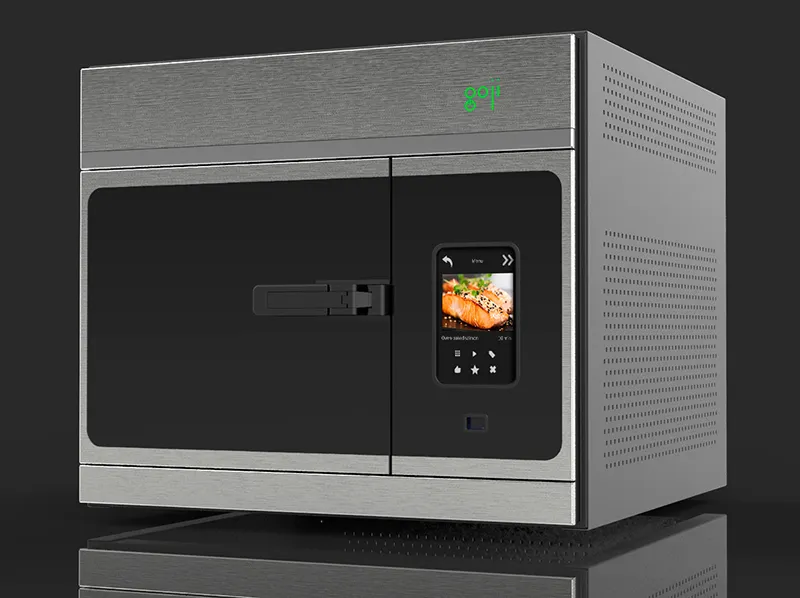

A solid state radio frequency oven would allow you to cook a whole meal at once. (Goji)
smithsonian.com

The microwave oven needs a do-over.

Sure, it once seemed a miraculous device, an appliance for our times. It served the needs of a culture on the run, not to mention how it brought magic to making popcorn. But microwaves never made it beyond a supporting role in the kitchen because frankly, it couldn’t be trusted to cook a meal from scratch.

For starters, because they work from the outside in, microwaves can’t really cook food evenly, far from ideal if you’re preparing raw meat. Plus, they can suck all the moisture out of some foods, turning bread and other carbohydrates into inedible bricks. So, although as many as 90 percent of American homes have a microwave oven, according to the U.S. Labor Department, they are mainly used just for reheating meals and popping popcorn.

Blame it on the magnetron, the cooking element of every microwave oven. It sends out the waves that stimulate food molecules and create heat, but does so with a shotgun approach. Some parts get hot, others not so much. And, while using the settings for different foods may help a bit, microwave cooking is still largely a hit-and-miss operation.

Now, however, an Israeli company named Goji Food Solutions says it has a better idea.

Cooking a whole meal at once

It’s based on solid state radio frequency (RF) technology that provides much more precision and control over the radio wave energy being emitted. Not only does that enable food to be cooked faster, but it also makes it possible to treat different foods in different ways, all at the same time.

In other words, a RF oven would allow you to cook a whole meal at once, with amplifiers sending out one radio beam set to cook meat, another to take care of vegetables and a third to bake a dinner roll. That works because Goji has added to the RF technology precise sensors that can read the makeup, thickness and moisture of the food and appropriately adapt the frequency, phase and amplitude of the radio waves. The process creates a feedback loop in which the amount of radio waves reflected from within the food is detected. Every few seconds, an algorithm recalculates the sensor data and the signal is adjusted as needed.

“In order to obtain optimal heating results for a particular dish, our system senses the food and adjusts the heating parameters using a unique algorithm in real time,” explains Goji president Yuval Ben-Haim. “This process also allows us to make adjustments when the food changes during the heating process; for example, a cake which rises during baking, frozen meat being defrosted, or apple chips being dried. Beyond cutting cooking time significantly for a wide range of dishes, this method results in tastier and healthier food by cooking it more evenly.”

RF-prepared food is healthier, according to Goji, because the rapid cooking makes it possible for the food to retain more nutrients and moisture.

To show just how precise RF cooking can be, Goji officials have demonstrated how they can effectively cook a salmon still frozen in a block of ice—without melting the ice.

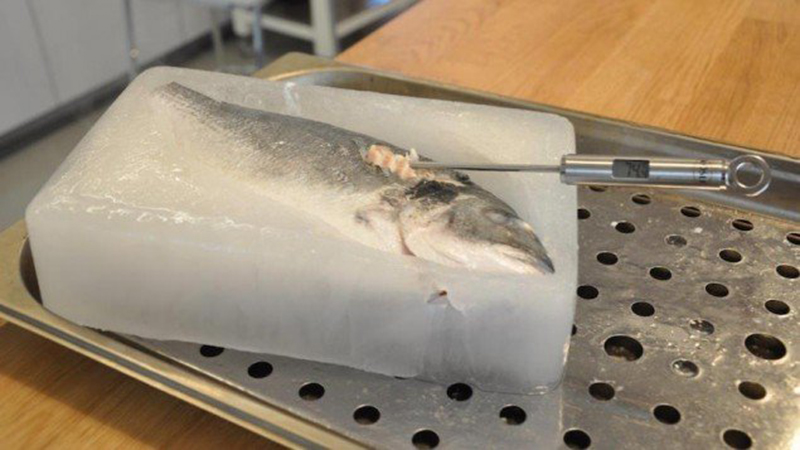

The Goji oven was actually able to cook a fish frozen inside a block of ice. (Goji)

Meals of the future

Oddly enough, Goji’s technology (the company holds a number of U.S. patents for its methods and devices) has its roots in organ transplants. In the mid-2000s, researchers looking for ways to preserve transplant organs discovered that they could use radio waves to defrost frozen tissue evenly. It became evident that it could have much broader applications.

But refining the process so that it could actually work in a person’s kitchen brought a steep learning curve, Ben-Haim acknowledges. Knowing it could work was one thing; bringing together all the components was quite another.

“The greatest challenge was transferring our product out of the lab and into serial production,” he says. “While we are not the first to have manufactured high-power RF systems, we are, to our knowledge, the only ones to have done so at high scale.”

While Goji is expected to have the first generation of its RF oven on the market later this year, it probably will be a few more years before there’s much consumer adoption. The first models are likely to cost in the range of high-end conventional ovens, perhaps $5,000 or more. The first buyers are expected to be commercial operations, such as restaurants, hotels and schools.

But the company is optimistic that it won’t be too long before it can start selling a less expensive countertop version. At the same time, it hopes to one day be able to get food manufacturers to include a special Goji bar code on their packaging. It could be read by a smartphone, which would then pass the info on to the oven so the food would be cooked to the precise specifications.

Ben-Haim sees many other possibilities, even beyond food preparation.

“RF technology could be used in restaurants, coffee shops, even vending machines to cook fresh and healthy food quickly. Imagine having your croissant freshly baked for you while you pay,” he says.

“But another exciting application is clothes drying. By incorporating RF technology into tumble dryers, we managed to shorten drying cycles significantly, while providing other benefits such as low temperature drying, which results in less wear and creasing.”

All that, and it will still make popcorn.
